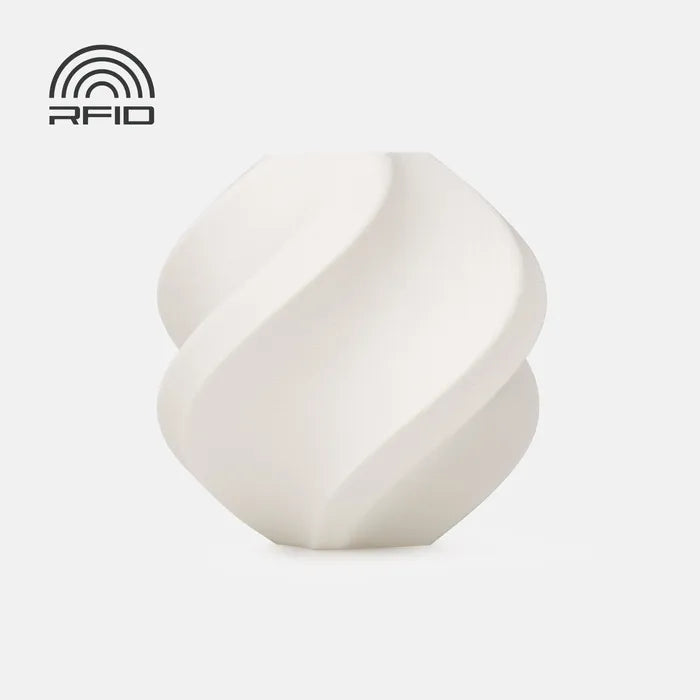

Bambu Lab PA6-GF Filament 1.75mm 1kg

White (72102)

$75.00

1/2

Bambu Lab PA6-GF Filament 1.75mm 1kg

$75.00

ColourWhite (72102)

Glass-fibre reinforced Nylon 6 — the value entry into serious engineering materials. It gives you high strength, high stiffness and 158°C heat resistance for meaningfully less than the carbon-fibre nylons, and it's the only one of the three available in colours rather than just black.

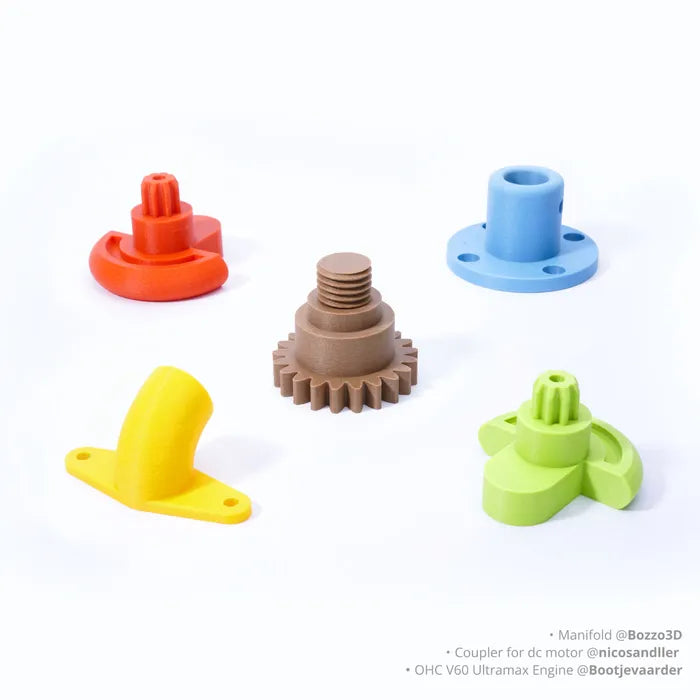

Good for jigs, fixtures, brackets and housings where you need real mechanical performance but don't need to pay for carbon fibre.

Enclosure, hardened nozzle, and no AMS Lite. 45–60°C chamber, which rules out the open-frame A-series. Glass fibre is every bit as abrasive as carbon — Bambu specify a hardened steel or tungsten carbide nozzle with 0.6mm recommended. 0.2mm is not supported, and the 0.4mm high-flow nozzle is not advised.

At a glance

Density	1.14 g/cm³
Nozzle temp	260–290°C
Bed temp	80–100°C
Enclosure	Required — 45–60°C chamber
Print speed	Up to 130 mm/s
Nozzle	Hardened steel, 0.6mm recommended
Compatibility	AMS Lite AMS / AMS 2 Pro

Which nylon?

	PA6-GF	PA6-CF	PAHT-CF
Price, 1kg	$75	$110	$90
Tensile strength	75 MPa	102 MPa	92 MPa
Impact, notched	7.2 kJ/m²	13.4 kJ/m²	22.8 kJ/m²
Water absorption	2.56%	2.35%	0.88%
Colours	Five	Black only	Black only

PA6-GF is the cost-effective option and the only one with a colour choice. The trade is toughness: at 7.2 kJ/m² notched it is the most brittle of the three, so it suits parts that are loaded steadily rather than knocked.

Two things to design around

Water absorption is 2.56% — the highest of anything we stock. In Singapore's humidity an open spool takes on moisture fast, and the published figures only hold in the dry state. Dry it at 80°C for 8–12 hours immediately before printing and feed from a sealed dry box.

Layer bonding is the weakest of the three nylons. Tensile drops from 75 MPa in plane to 27 MPa across layers — about a third — and impact in Z falls to 4.1 kJ/m². A part loaded across its layers has nothing like the strength the headline figure suggests. Orientation is not optional with this material.

Printing it well

Glue stick on a Smooth PEI plate — that is Bambu's specific recommendation here. The Cool Plate SuperTack is not compatible.

Use Support for PA/PET — specified by Bambu for this material.

Annealing: 80–130°C for 6 to 12 hours, endorsed and worthwhile on this material.

Storage

Bambu specifies under 20% RH, sealed with desiccant, and 80°C for 8–12 hours to dry. If the finished part will live somewhere humid, Bambu suggest a dense coating or wax seal to keep moisture out.

Bambu's usage guide for the glass-fibre grades covers handling, warping and advanced tuning: ABS-GF / PA6-GF Usage Guide

Full specifications

Printing

Nozzle temperature260–290°C

Nozzle size0.6 mm recommended
hardened steel or tungsten carbide;
not 0.2 mm; 0.4 mm high-flow not advised

Bed temperature80–100°C

Chamber temperature45–60°C

Build plateSmooth PEI with glue stick
Cool Plate SuperTack

Print speedUp to 130 mm/s

Support materialSupport for PA/PET

Drying & storage

Drying80°C for 8–12 hours

HumidityUnder 20% RH, sealed

Water absorption2.56%

Annealing80–130°C for 6–12 hours

Thermal

Density1.14 g/cm³

Melting temperature219°C

Vicat softening210°C

Heat deflection158°C at 1.8 MPa
182°C at 0.45 MPa

Mechanical

Tensile strength (X–Y)75 ± 6 MPa
27 ± 5 MPa (Z)

Young's modulus (X–Y)2850 ± 260 MPa

Bending strength (X–Y)120 ± 6 MPa

Impact strength (X–Y)27.2 ± 2.2 kJ/m²
7.2 ± 2.3 notched

Figures from the Bambu Lab PA6-GF technical data sheet v1.0, measured on dry specimens, with nozzle, build-plate and compatibility detail from Bambu's ABS-GF / PA6-GF usage guide. Nylon absorbs moisture readily and wet parts perform well below these figures.
